DTX-9SS

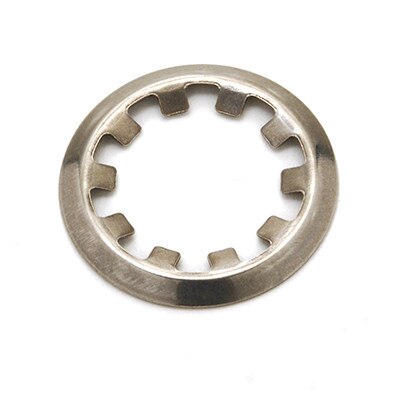

The DTX-9SS is a self-locking external push-on ring for a 9 mm shaft diameter and is 0.3 mm thick. It is made from Stainless Steel PH15-7Mo, Passivated finish supplied by Rotor Clip. Made in USA

DTX Series Catalog Pages

Rotor Clip Interchange Chart

Details

Part# DTX-9SS

Stainless Steel: PH15-7Mo (AMS5520), Passivated
Self-Locking, Push-On External Ring
Manufactured by Rotor Clip
Made in USA

9 mm Shaft Diameter
14 mm Free Outside Diameter
0.3 mm Thickness
5 Prongs (teeth)

Quantity discounts available

Quantity	Price
10 - 49	$1.3310
50 - 99	$1.0650
100 - 499	$0.9830
500 +	$0.9400

200 In Stock

(*) Minimun Quantity: 10

More information

Metric self-locking external retaining ring in carbon steel, phosphate. Self-locking retaining rings can be installed in a housing/bore or on a shaft that has not had a groove machined into it. Self-locking rings with no lug holes are impossible to remove without either destroying the ring or warping it out of specified tolerances.
