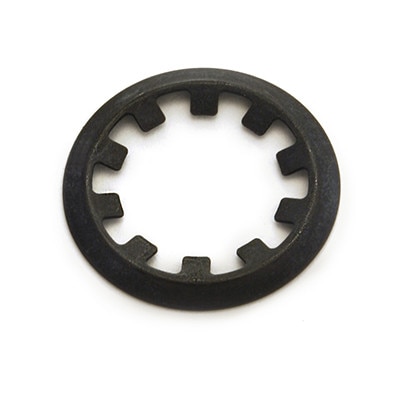

DTX-22ST PD

The DTX-22ST PD is a self-locking external push-on ring for a 22 mm shaft diameter and is 0.5 mm thick. It is made from Carbon Steel, Phosphate & Oil finish supplied by Rotor Clip. Made in USA

Details

Part# DTX-22ST PD

Carbon Spring Steel SAE 1060-1090, Phosphate & Oil
Self-Locking, Push-On External Ring
Manufactured by Rotor Clip
Made in USA

22 mm Shaft Diameter
31 mm Free Outside Diameter
0.5 mm Thickness
8 Prongs (teeth)

Quantity discounts available

Quantity	Price
50 - 99	$1.1590
100 - 499	$0.5800
500 - 999	$0.4640
1000 - 4999	$0.4220
5000 - 9999	$0.3870
10000 +	$0.3570

3038 In Stock

(*) Minimun Quantity: 50

More information

Metric self-locking external retaining ring in carbon steel, phosphate. Self-locking retaining rings can be installed in a housing/bore or on a shaft that has not had a groove machined into it. Self-locking rings with no lug holes are impossible to remove without either destroying the ring or warping it out of specified tolerances.
