DSI-22ST PD

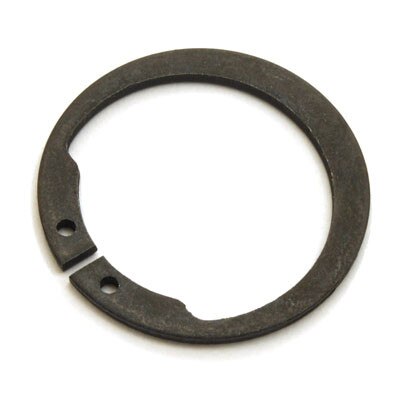

The inverted external ring DSI-22ST PD is produced for a 22 mm shaft diameter and is 1.2 mm thick. It is made from Carbon Steel, Phosphate & Oil finish supplied by Rotor Clip. Made in USA

Details

Part# DSI-22ST PD

Carbon Steel, Phosphate & Oil
Manufactured by Rotor Clip
Made in USA

22 mm Shaft Diameter, Inverted External Ring
20.5 mm Free Inside Diameter
1.2 mm Thick
1.5 mm Hole Diameter

21 mm Groove Diameter
1.3 mm Groove Width
0.5 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$1.1250
100 - 499	$0.5630
500 - 999	$0.4500
1000 - 4999	$0.4090
5000 - 9999	$0.3750
10000 +	$0.3460

460 In Stock

(*) Minimun Quantity: 50

More information

Metric external inverted retaining ring. The DSI Series functions like a DSH Series ring in a shaft, only the lugs are "reversed." This version reduces the distance the lugs of the standard DSH Series extend beyond the circumference of the shaft. The shaft can then be used in an application where clearance is minimal.
