Please log in to see price or purchase this item
|
| 3 - 9 | $79.4920 |
| 10 - 49 | $54.6510 |
| 50 - 99 | $43.7210 |
| 100 - 499 | $40.3580 |
| 500 + | $38.5770 |
More information

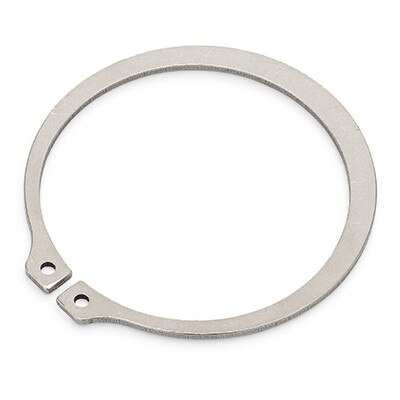

Metric basic external retaining ring in stainless steel manufactured to DIN471. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
