DSH-6ST PD

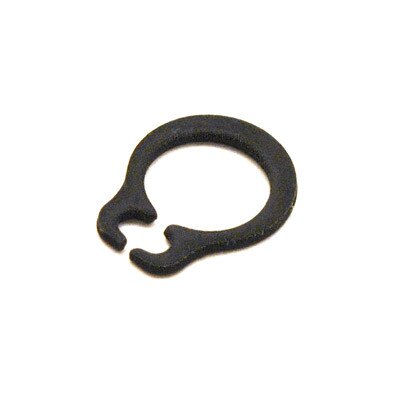

The DSH-6ST PD is a DIN471 external retaining ring for a 6 mm shaft diameter and is 0.7 mm thick. It is made from Carbon Steel, Phosphate & Oil finish supplied by Rotor Clip. Made in USA

Details

Part# DSH-6ST PD

Carbon Steel, Phosphate & Oil
Manufactured by Rotor Clip
Made in USA

6 mm Shaft Diameter, Basic External Ring
5.6 mm Free Inside Diameter
0.7 mm Thick
1.2 mm Hole Diameter

5.7 mm Groove Diameter
0.8 mm Groove Width
0.15 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
100 - 499	$0.0360
500 - 999	$0.0290
1000 - 4999	$0.0270
5000 - 9999	$0.0240
10000 +	$0.0230

2719 In Stock

(*) Minimun Quantity: 100

More information

Metric basic external retaining ring in carbon steel manufactured to DIN471. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
