DSH-20SS

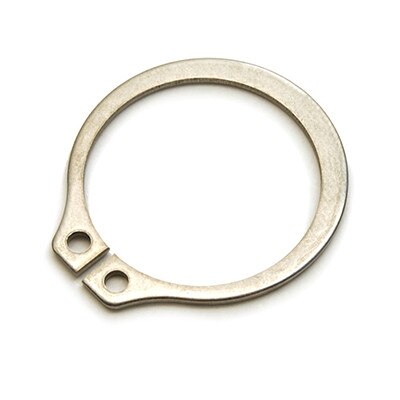

The DSH-20SS is a DIN471 external retaining ring for a 20 mm shaft diameter and is 1.2 mm thick. It is made from Stainless Steel DIN 1.4532, Self-Passivated finish supplied by Rotor Clip. Made in USA

Details

Part# DSH-20SS

Stainless Steel DIN 1.4532
Manufactured by Rotor Clip
Made in USA

20 mm Shaft Diameter, Basic External Ring
18.5 mm Free Inside Diameter
1.2 mm Thick
2 mm Hole Diameter

19 mm Groove Diameter
1.3 mm Groove Width
0.5 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
500 - 999	$2.2680
1000 - 4999	$2.0620
5000 - 9999	$1.8900
10000 +	$1.7440

0 In Stock

(*) Minimun Quantity: 500

More information

Metric basic external retaining ring in stainless steel manufactured to DIN471. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
