Part# DHT-48ST PD
Carbon Spring Steel SAE 1060-1090, Phosphate & Oil
Internal Retaining Ring
DIN 984 with Internal Teeth
Manufactured by Rotor Clip
48 mm Housing Diameter
51.5 mm Free Outside Diameter
1.75 mm Thickness
2.5 mm Hole Diameter
50.5 mm Groove Diameter
1.85 mm Groove Width
1.25 Groove Depth
Carbon Spring Steel SAE 1060-1090, Phosphate & Oil
Internal Retaining Ring
DIN 984 with Internal Teeth
Manufactured by Rotor Clip
48 mm Housing Diameter
51.5 mm Free Outside Diameter
1.75 mm Thickness
2.5 mm Hole Diameter
50.5 mm Groove Diameter
1.85 mm Groove Width
1.25 Groove Depth

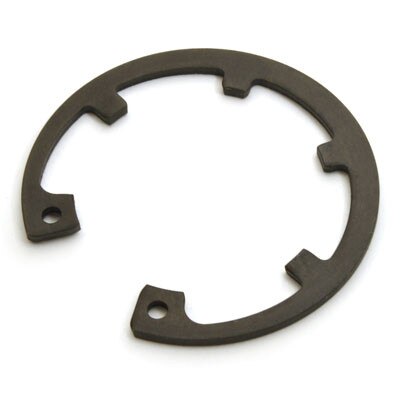

Similar in design to the DHO Internal Series ring, this Series features several "teeth" equally distributed along the circumference of the ring. The increased shoulder offered by the teeth is particularly effective in retaining applications with large radii or chamfers.
