DHR-35ST PD

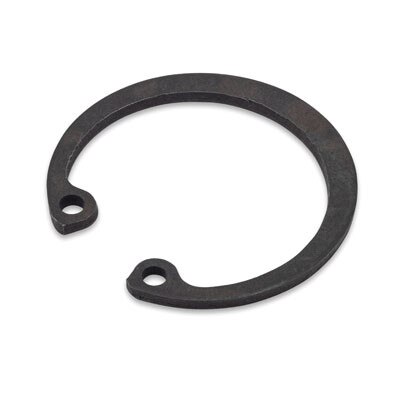

The DHR-35ST PD is a 1.75 mm thick heavy duty internal retaining ring designed for a 35 mm housing diameter application. This snap ring is crafted from Carbon Steel with Phosphate & Oil finish and manufactured by Rotor Clip.

Details

Part# DHR-35ST PD

Carbon Steel, Phosphate & Oil
Manufactured by Rotor Clip

35 mm Housing Diameter, Heavy Duty Internal Ring
37.8 mm Free Outside Diameter
1.75 mm Thick
2.5 mm Hole Diameter

37 mm Groove Diameter
1.85 mm Groove Width
1 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$0.6830
100 - 499	$0.3420
500 - 999	$0.2740
1000 - 4999	$0.2490
5000 - 9999	$0.2280
10000 +	$0.2110

375 In Stock

(*) Minimun Quantity: 50

More information

A reinforced/thicker version of the DHO Series featuring a larger radial width. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
