DHO-60SG

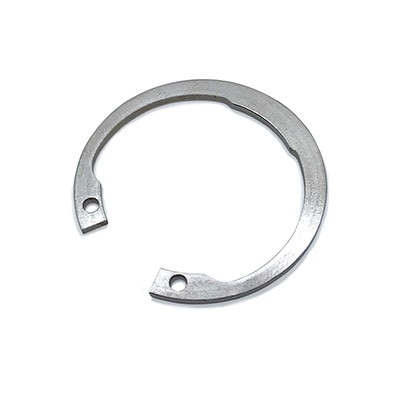

The DHO-60SG is designed for a 60 mm housing diameter application with a 2 mm thickness, which meets DIN472 internal retaining ring specifications. This snap ring is crafted from Stainless Steel DIN 1.4122 with Self-Passivated finish and manufactured by Rotor Clip. Made in USA

Details

Part# DHO-60SG

Stainless Steel DIN 1.4122, Passivated
Manufactured by Rotor Clip
Made in USA

60 mm Housing Diameter, Basic Internal Ring
64.2 mm Free Outside Diameter
2 mm Thick
2.5 mm Hole Diameter

63 mm Groove Diameter
2.15 mm Groove Width
1.5 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
5 - 99	$19.6680
100 - 499	$9.8340
500 - 999	$7.8670
1000 - 4999	$7.1520
5000 - 9999	$6.5560
10000 +	$6.0520

122 In Stock

(*) Minimun Quantity: 5

More information

Metric basic internal retaining ring in stainless steel manufactured to DIN472. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
