DHO-55ST PD

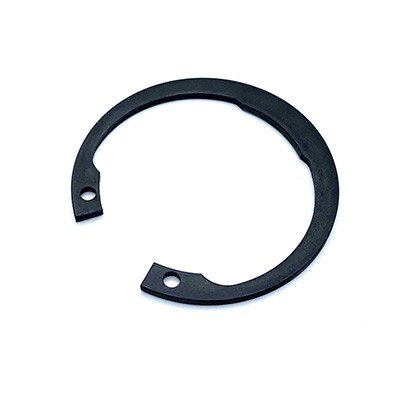

The DHO-55ST PD is designed for a 55 mm housing diameter application with a 2 mm thickness, which meets DIN472 internal retaining ring specifications. This snap ring is crafted from Carbon Steel with Phosphate & Oil finish and manufactured by Rotor Clip. Made in USA

Details

Part# DHO-55ST PD

Carbon Steel, Phosphate & Oil
Manufactured by Rotor Clip
Made in USA

55 mm Housing Diameter, Basic Internal Ring
59.2 mm Free Outside Diameter
2 mm Thick
2.5 mm Hole Diameter

58 mm Groove Diameter
2.15 mm Groove Width
1.5 mm Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$1.2180
100 - 499	$0.6090
500 - 999	$0.4870
1000 - 4999	$0.4430
5000 - 9999	$0.4060
10000 +	$0.3750

4430 In Stock

(*) Minimun Quantity: 50

More information

Metric basic internal retaining ring in carbon steel manufactured to DIN472. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
