DE-6ST Z3X

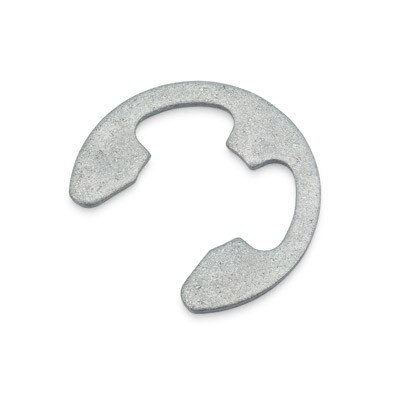

The DE-6ST Z3X metric E-Style retaining ring is crafted from Carbon Steel with Zinc Clear Trivalent Chromate finish. It has a 6 mm groove diameter application and a 0.7 mm thickness with a distinct E Shape. Made in USA

DE Series Catalog Pages

Rotor Clip Interchange Chart

Details

Part# DE-6ST Z3X

Carbon Spring Steel SAE 1060-1090, Zinc Clear Trivalent Chromate
Manufactured by Rotor Clip
Made in USA

6 mm Nominal Size, E-Style External Ring
11.8 mm Free Outside Diameter
0.7 mm Thick

Shaft Diameter from 7 to 9 mm
6 mm Groove Diameter
0.74 mm Groove Width

Quantity discounts available

Quantity	Price
100 - 499	$0.0550
500 - 999	$0.0440
1000 - 4999	$0.0400
5000 - 9999	$0.0370
10000 +	$0.0340

5015 In Stock

(*) Minimun Quantity: 100

More information

Perhaps the most popular and widely used radial retaining ring is the E (so named because it is shaped like the letter E.) three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.
