External Ring# CRS-105ST OIL
Round Wire to DIN 7993
Carbon Steel, Phosphate & Oil
105 mm Shaft Diameter
4.134 In. Shaft Diameter
100.8 mm Inside Diameter
3.2 mm Wire Thickness
3.2 mm Section Width
Recommended Groove Size
101.8 mm Diameter
✅ RoHS Compliant ✅ REACH Compliant
Round Wire to DIN 7993
Carbon Steel, Phosphate & Oil
105 mm Shaft Diameter
4.134 In. Shaft Diameter
100.8 mm Inside Diameter
3.2 mm Wire Thickness
3.2 mm Section Width
Recommended Groove Size
101.8 mm Diameter
✅ RoHS Compliant ✅ REACH Compliant

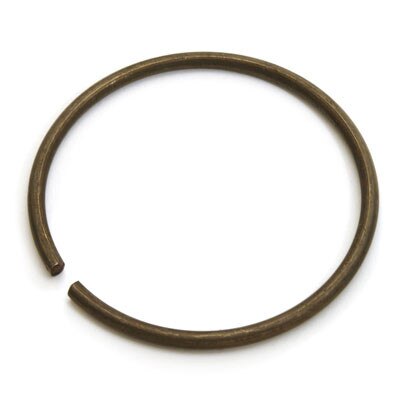

Metric external snap ring in round wire manufactured to Din7993. Once installed in the groove of a shaft, the portion of the ring protruding from the groove holds an assembly in place.
