CM-975ST OIL

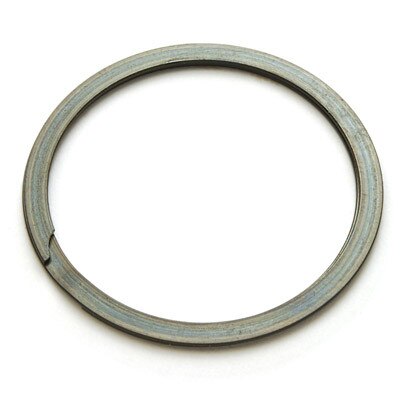

The CM-975ST OIL is a 9-3/4 inch External Medium Duty Spiral Ring in Carbon Steel with 0.086 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

CM Series Catalog Pages

Details

Part# CM-975ST OIL

Carbon Steel, Plain, Lightly Oiled
Medium Duty External Spiral Ring
Manufactured by Rotor Clip
Made in USA

9.75 In. Shaft Diameter
9.432 In. Free Inside Diameter
0.375 In. Section Width
0.086 In. Thick

9.508 In. Groove Diameter
0.094 In. Groove Width
0.121 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$57.3340
10 - 49	$39.4170
50 - 99	$31.5340
100 - 499	$29.1080
500 +	$27.8240

0 In Stock

(*) Minimun Quantity: 1

More information

Medium duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
