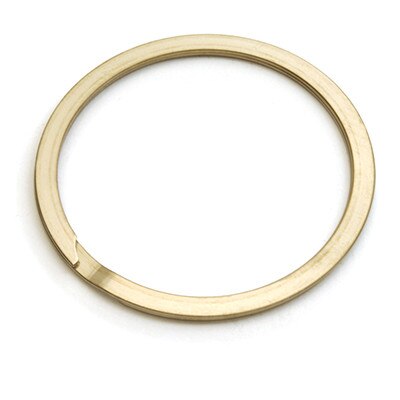

CM-65SJ

The CM-65SJ is a 21/32 inch External Medium Duty Spiral Ring in 302 Stainless Steel with 0.025 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

CM Series Catalog Pages

Details

Part# CM-65SJ

302 Stainless Steel,
Medium Duty External Spiral Ring
Manufactured by Rotor Clip
Made in USA

0.656 In. Shaft Diameter
0.617 In. Free Inside Diameter
0.055 In. Section Width
0.025 In. Thick

0.625 In. Groove Diameter
0.03 In. Groove Width
0.016 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$2.9820
10 - 49	$2.0500
50 - 99	$1.6400
100 - 499	$1.5140
500 +	$1.4470

0 In Stock

(*) Minimun Quantity: 1

More information

Medium duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
