CLD2191000MCP

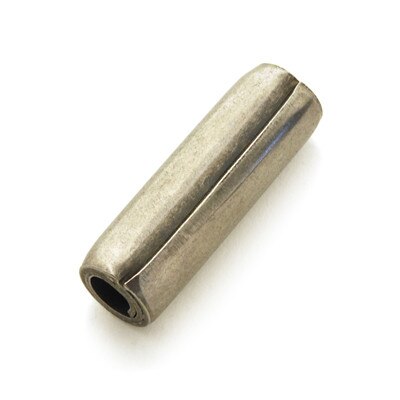

CLD2191000MCP is a durable 7/32 X 1 Inch Standard Duty Coiled Pin, crafted from 420 Stainless Steel with Passivated finish.

Details

Part# CLD2191000MCP

420 Stainless Steel, Standard Duty Coiled Pin, Passivated

7/32 X 1 Callout Size
0.233 Pin Diameter
1 Useable Length with 0.01 Length Tolerance
0.217 - 0.224 Compatible Hole Diameter

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$2.1290
100 - 499	$1.0650
500 - 999	$0.8520
1000 - 4999	$0.7740
5000 - 9999	$0.7100
10000 +	$0.6550

7100 In Stock

(*) Minimun Quantity: 25

More information

Standard duty, coiled spiral pin in stainless steel with passivated finish. A coiled spring pin, also known as a spiral pin, is a self retaining engineered fastener manufactured by roll forming metal strip into a spiral cross section of 2-1/4 coils. Coiled spring pins have a body diameter larger than the recommended hole diameter and chamfers on both ends to facilitate starting the pin into the hole, the spring action of the pin allows it to compress as it assumes the diameter of the hole.
