CL-300SJ

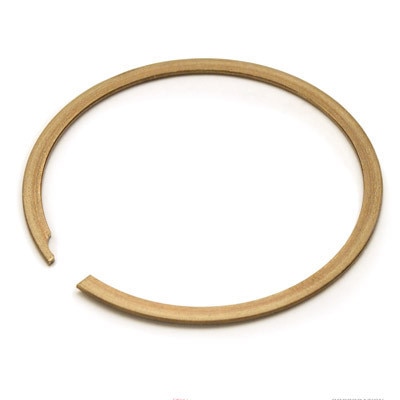

The CL-300SJ is a 3 inch External Light Duty Spiral Ring in 302 Stainless Steel with 0.031 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

CL Series Catalog Pages

Details

Part# CL-300SJ

302 Stainless Steel,
Light Duty External Spiral Ring
Manufactured by Rotor Clip
Made in USA

3 In. Shaft Diameter
2.892 In. Free Inside Diameter
0.158 In. Section Width
0.031 In. Thick

2.924 In. Groove Diameter
0.039 In. Groove Width
0.038 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
5 - 9	$4.2490
10 - 49	$2.9210
50 - 99	$2.3370
100 - 499	$2.1570
500 +	$2.0620

65 In Stock

(*) Minimun Quantity: 5

More information

Light duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
