  • CG-125SJ, 1-1/4 In. External Hvy Duty Spiral Ring TRUWAVE

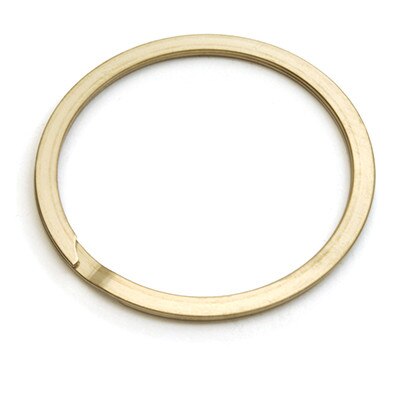

The CG-125SJ is a 1-1/4 inch External Heavy Duty Spiral Ring in 302 Stainless Steel with 0.05 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

Details

Details

Part# CG-125SJ

302 Stainless Steel,
Heavy Duty External Spiral Ring
Manufactured by Rotor Clip
Made in USA

1.25 In. Shaft Diameter
1.163 In. Free Inside Diameter
0.103 In. Section Width
0.05 In. Thick

1.176 In. Groove Diameter
0.056 In. Groove Width
0.037 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$2.9640
10 - 49$2.0380
50 - 99$1.6300
100 - 499$1.5050
500 +$1.4390

1604 In Stock

(*) Minimun Quantity: 1

More information

Heavy duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
