BSH-25SS

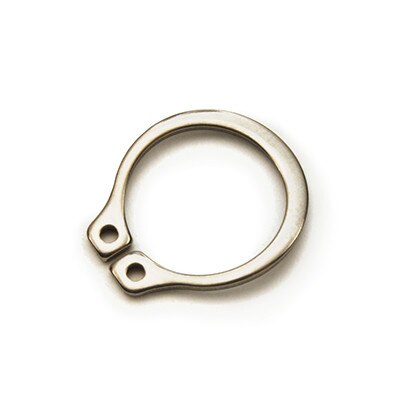

The BSH-25SS External retaining ring is crafted from Stainless Steel PH15-7Mo with Passivated finish. It has a 1/4 inch diameter application and a 0.025 inch thickness with a distinct bowed design. Made in USA

Details

Part# BSH-25SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

0.25 In. Shaft Diameter, Bowed External Ring
0.225 In. Free Inside Diameter
0.025 In. Thick
0.041 In. Hole Diameter

0.23 In. Groove Diameter
0.04 In. Groove Width
0.01 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
10 - 99	$5.9380
100 - 499	$2.9690
500 - 999	$2.3750
1000 - 4999	$2.1590
5000 - 9999	$1.9800
10000 +	$1.8270

3690 In Stock

(*) Minimun Quantity: 10

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
