BSH-106ST PA

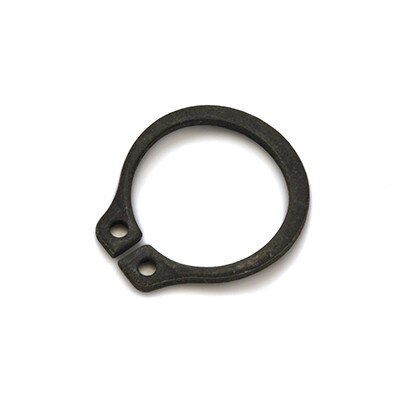

The BSH-106ST PA External retaining ring is crafted from Carbon Steel with Phosphate finish. It has a 1-1/16 inch diameter application and a 0.05 inch thickness with a distinct bowed design. Made in USA

Details

Part# BSH-106ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

1.062 In. Shaft Diameter, Bowed External Ring
0.982 In. Free Inside Diameter
0.05 In. Thick
0.078 In. Hole Diameter

0.998 In. Groove Diameter
0.07 In. Groove Width
0.032 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$1.3760
100 - 499	$0.6880
500 - 999	$0.5510
1000 - 4999	$0.5010
5000 - 9999	$0.4590
10000 +	$0.4240

7367 In Stock

(*) Minimun Quantity: 25

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
