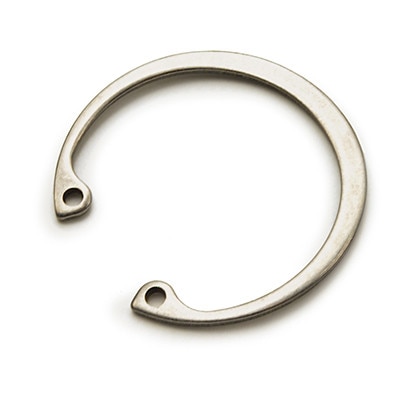

The BHO-37SS Internal retaining ring is crafted from Stainless Steel PH15-7Mo with Passivated finish. It has a 3/8 inch diameter application and a 0.025 inch thickness with a distinct bowed design. Made in USA

Details

BHO-37SS - Bowed Internal Retaining Ring - 3/8 in. Housing, Stainless Steel: PH15-7Mo, Passivated

Attribute	Value
Manufacturer	Rotor Clip Company, Inc
Series	BHO
Design	Per Manufacturer Engineering Standards
Inch/Metric	Inch
Type	Internal
Housing Diameter	0.375 in.
Material	Stainless Steel: PH15-7Mo
Finish	Passivated
Outside Diameter	0.415 in.
Ring Thickness	0.025 in.
Groove Diameter	0.397 in.
Groove Width	0.04 in.
Groove Depth	0.011 in.
Bow Height	0.047 in.
Compliance	✔ RoHS ✔ REACH ✔ Prop65

Quantity discounts available

Quantity	Price
5 - 99	$8.0460
100 - 499	$4.0230
500 - 999	$3.2190
1000 - 4999	$2.9260
5000 - 9999	$2.6820
10000 +	$2.4760

2665 In Stock

(*) Minimun Quantity: 5

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
