BE-37SS

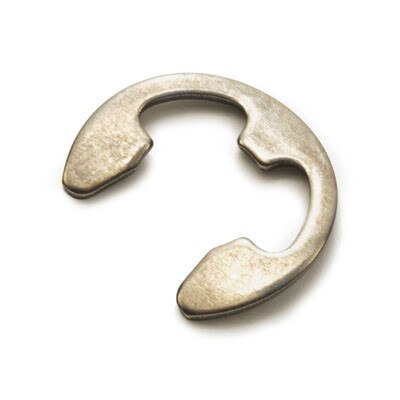

The BE-37SS E-Style retaining ring is crafted from Stainless Steel PH15-7Mo with Passivated finish. It has a 3/8 inch diameter application and a 0.035 inch thickness with a distinct bowed design. Made in USA

Details

Part# BE-37SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

0.375 In. Shaft Diameter, Bowed E-Style External Ring
0.66 In. Free Outside Diameter
0.3 In. Free Inside Diameter
0.035 In. Thick

0.303 In. Groove Diameter
0.06 In. Groove Width
0.036 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$3.2220
100 - 499	$1.6110
500 - 999	$1.2890
1000 - 4999	$1.1720
5000 - 9999	$1.0740
10000 +	$0.9920

800 In Stock

(*) Minimun Quantity: 25

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
