974R, 45 mm External Retaining Rings for SAE Standard Bearings Distributed by Prospect Fastener

Details

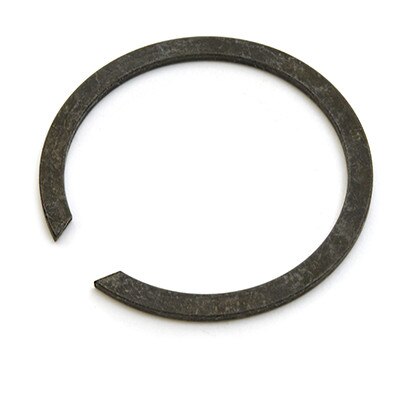

974R External Ring - 45 mm Rings for SAE Std Bearings

Attribute	Value
Design	Per Manufacturer Engineering Standards
Type	External
Inch/Metric	Inch
Material	Carbon Steel
Vendor Part	0974-R
Shaft Diameter	1.772 in.
Inside Diameter	1.625 in.
Ring Thickness	0.093 in.
Ring Section Width	0.188 in.
Groove Diameter	1.648 in.
Groove Width	0.108 in.
Groove Depth	0.062 in.
Bearing Number Heavy	409
Bearing Number Light	209
Bearing Number Medium	309
Compliance	✔ RoHS ✔ REACH ✔ Prop65

Quantity discounts available

Quantity	Price
25 - 99	$2.3700
100 - 499	$1.1850
500 - 999	$0.9480
1000 - 4999	$0.8620
5000 - 9999	$0.7900
10000 +	$0.7300

5650 In Stock

(*) Minimun Quantity: 25

More information

Eaton Style external constant section retaining ring for SAE standard bearings metric sizes # 974R. A retaining ring is a fastener that holds components or assemblies onto a shaft or in a housing/bore when installed in a groove. Once installed, the exposed portion acts as a shoulder which retains the specific component or assembly.
