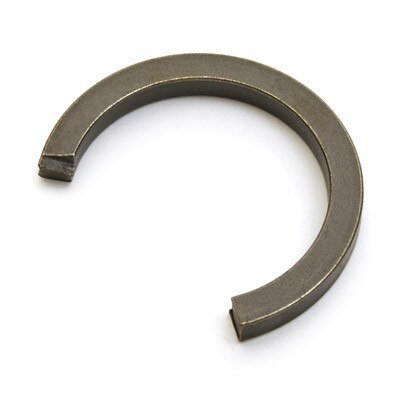

439 External Ring - Square Section, Open Gap, Carbon Steel, Plain & Oil - 1-5/16 in. Shaft

AttributeValue
DesignPer Manufacturer Engineering Standards
TypeExternal
Inch/MetricInch
MaterialCarbon Steel
Shaft Diameter1.312 (1-5/16) in.
Inside Diameter1.222 in.
Ring Thickness0.156 in.
Ring Section Width0.156 in.
Groove Diameter1.234 in.
Groove Width0.164 in.
Groove Depth0.039 in.
Compliance✔ RoHS ✔ REACH ✔ Prop65
QuantityPrice
10 - 99$3.2200
100 - 499$1.6100
500 - 999$1.2880
1000 - 4999$1.1710
5000 - 9999$1.0740
10000 +$0.9910

3740 In Stock

(*) Minimun Quantity: 10

More information

Square Section, external retaining ring. A retaining ring is a fastener that holds components or assemblies onto a shaft or in a housing/bore when installed in a groove. Once installed in the groove, the portion of the ring protruding from the groove holds an assembly in place.
