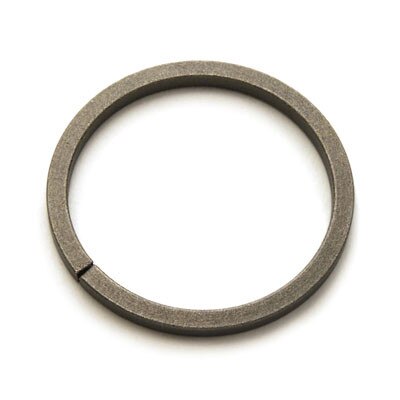

External Ring# 339
Square Section, Closed Gap
Carbon Steel SAE 1060/1075, Plain & Oil
1.312 In. Shaft Diameter
1.222 In. Inside Diameter
0.156 In. Wire Thickness
Recommended Groove Size
1.234 In. Diameter
0.039 In. Depth
0.164 Width
Square Section, Closed Gap
Carbon Steel SAE 1060/1075, Plain & Oil
1.312 In. Shaft Diameter
1.222 In. Inside Diameter
0.156 In. Wire Thickness
Recommended Groove Size
1.234 In. Diameter
0.039 In. Depth
0.164 Width
Square Section, external retaining ring. A retaining ring is a fastener that holds components or assemblies onto a shaft or in a housing/bore when installed in a groove. Once installed in the groove, the portion of the ring protruding from the groove holds an assembly in place.
