Internal Constant Section Ring # 1410 for SAE Std Bearings

SKU: 1410
(0) No Reviews yet
$1.3000
QuantityPrice
10 – 499$1.3000
500 – 999$0.7800
1000 – 2499$0.5200
2500 – 4999$0.3390
5000 – 9999$0.2530
10000 – 24999$0.2150
25000 +$0.2050

15779 In Stock

100; Stack; VCI;

(*) Minimum Quantity: 10

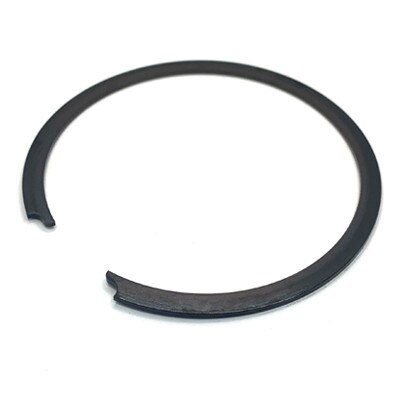

Internal Ring# 1410
For SAE Standard Bearings
Carbon Steel SAE 1060/1075, Plain & Oil

3.15 In. Housing Diameter
79.82 mm Housing Diameter
3.296 In. Outside Diameter
0.062 In. Wire Thickness

Recommended Groove Size
3.274 In. Diameter
0.062 In. Depth
0.068 In. Width
These snap rings hold the outer race of bearings against thrust. They can also be used to hold the outer race of thrust loads in either direction.
