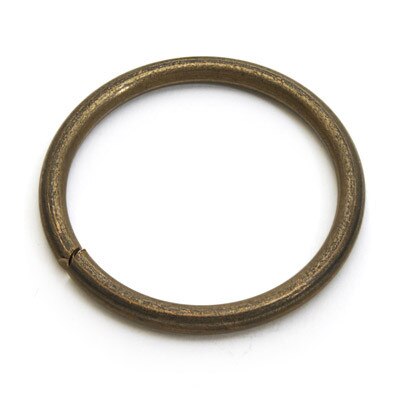

External Ring# 111, Round Section, Closed Gap, Carbon Steel, Plain & Oil

Details

111 External Ring - Round Section, Closed Gap, Carbon Steel, Plain & Oil - 7/16 in. Shaft

Attribute	Value
Design	Per Manufacturer Engineering Standards
Type	External
Inch/Metric	Inch
Material	Carbon Steel
Shaft Diameter	0.437 (7/16) in.
Inside Diameter	0.399 in.
Ring Thickness	0.051 in.
Ring Section Width	0.051 in.
Groove Diameter	0.405 in.
Groove Depth	0.016 in.
Compliance	✔ RoHS ✔ REACH ✔ Prop65

Quantity discounts available

Quantity	Price
10 - 499	$0.9110
500 - 999	$0.5470
1000 - 2499	$0.3640
2500 - 4999	$0.2370
5000 - 9999	$0.1780
10000 - 24999	$0.1520
25000 +	$0.1440

3649 In Stock

(*) Minimun Quantity: 10

More information

Round Section, external retaining ring. A retaining ring is a fastener that holds components or assemblies onto a shaft or in a housing/bore when installed in a groove. Once installed in the groove, the portion of the ring protruding from the groove holds an assembly in place.
