GA3121750G8PL

GA3121750G8PL, 5/16 X 1-3/4 inch Type A, Alloy Steel Grooved Pin, with Plain finish, manufactured by Driv-Lok. Made in USA

Grooved Pin Specifications

Details

Part# GA3121750G8PL

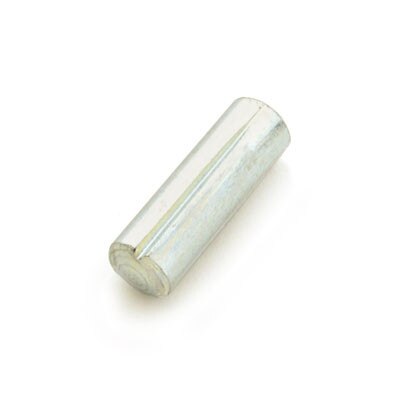

5/16 X 1-3/4 Type A Grooved Pin
High Alloy Steel, Plain
SHEAR-PROOF as Manufactured by Driv-Lok

0.312 In. Nominal Diameter
1.75 In. Length
0.3105 - 0.3125 In. Diameter Range
0.329 In. Max Crown Diameter
0.317 In. Compatible Hole Diameter

✅ RoHS Compliant ✅ REACH Compliant

Made in USA

Quantity discounts available

Quantity	Price
25 - 99	$1.2500
100 - 499	$0.6250
500 - 999	$0.5000
1000 - 4999	$0.4550
5000 - 9999	$0.4170
10000 +	$0.3850

6662 In Stock

(*) Minimun Quantity: 25

More information

Grooved pins are unthreaded fasteners employed in press-fit applications. They serve diverse functions, including locking mechanisms, pivots, and bearing surfaces, ideally in situations that do not involve enduring significant end loads.The Type A Pin has three full-length tapered grooves. This popular type of pin is used in applications requiring excellent locking effect and ease of assembly and is widely used in place of taper pins, rivets, set screws, and keys. Typical applications include keying sprockets, gears, collars, knobs, handles, levers, and wheels to shafts.
