CWV1007Z1

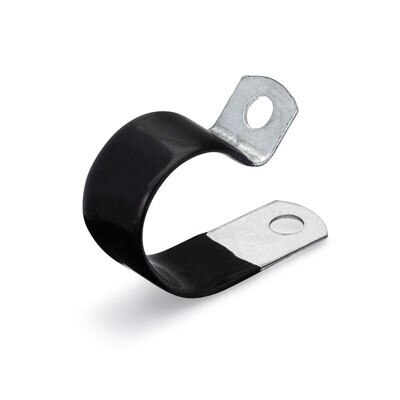

KMC Stampings' CWV1007Z1, 9/16 inch light-duty clamp made of Hot-Dipped Galvanized Steel, Chem-Treated G90 with a Black Vinyl Plastisol cushion. This clamp features a 0.203 screw hole diameter is ideal for numerous wire and tube applications. Made in USA

CW-CWV Series Catalog Pages

CWV Series Family Print

Details

Part# CWV1007Z1

9/16 In. Diameter Light Duty Clamp
Hot-Dipped Galvanized Steel, Chem-Treated G90
Black Vinyl Plastisol Cushion
Manufactured by KMC Stampings

0.562 In. Clamping Diameter
0.203 In. Screw Hole Size
0.5 In. Width
0.032 In. Material Thickness
Made in USA

✅ RoHS Compliant ✅ REACH Compliant
⚠ California Proposition 65 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
50 - 99	$1.1000
100 - 499	$0.5500
500 - 999	$0.4400
1000 - 4999	$0.4000
5000 - 9999	$0.3670
10000 +	$0.3390

2537 In Stock

(*) Minimun Quantity: 50

More information

Light duty cushion clamp, furnished open, manufactured from hot dipped galvanized steel, chem-treated G90, per ASTM A653/A653M, with black vinyl plastisol coating. A vinyl coating dampens vibration and noise while securing your lines while also providing abrasion resistance. Furnished open to allow the clip to be snapped over wiring or tube, then closed with the bolt at assembly. Contoured to minimize distortion during clamping.
