  • CJ0913Z1, 9/16 In. J-Clip in Galvanized Steel, with No Cushion and 0.406 Screw Hole

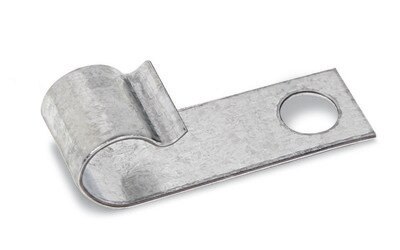

CJ0913Z1, 9/16 In. J-Clip in Hot-Dipped Galvanized Steel, Chem-Treated G90 with No Cushion and 0.406 Screw Hole Diameter Manufactured by KMC Stampings Made in USA

Details

Details

CJ0913Z1, 9/16 in Dia. J-Clip with 0.406 Hole Dia in Hot-Dipped Galvanized Steel, Chem-Treated G90

Part NumberCJ0913Z1
Diameter (Fraction)9/16
Clamping Diameter (Decimal)0.562 In.
MaterialHot-Dipped Galvanized Steel, Chem-Treated G90
Cushion TypeNone
Width0.75 In.
Fastening Hole Diameter0.406 In.
Material Thickness0.032 In.
ManufacturerKMC Stampings
Country of OriginUS
RoHS CompliantYes
REACH CompliantYes
Prop 65 CompliantLead
QuantityPrice
50 - 99$0.7000
100 - 499$0.3500
500 - 999$0.2800
1000 - 4999$0.2550
5000 - 9999$0.2340
10000 +$0.2160

1243 In Stock

(*) Minimun Quantity: 50

More information

J-clip, manufactured from hot dipped galvanized steel, chem-treated G90, per ASTM A653/A653M, with no cushion. J-clips are used to hold or clamp a wire or tube in its proper location in an assembly. For applications where clip is installed first and wiring is added later. This clip can be pinched shut with screwdriver blade or pliers.
