BHO-100ST PA

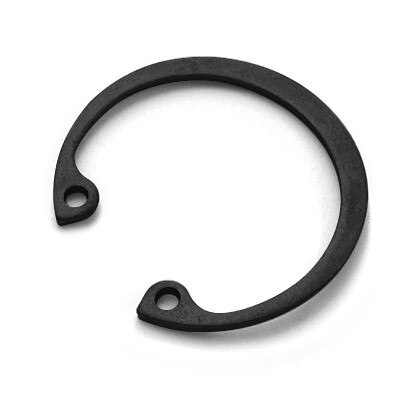

The BHO-100ST PA Internal retaining ring is crafted from Carbon Steel with Phosphate finish. It has a 1 inch diameter application and a 0.042 inch thickness with a distinct bowed design. Made in USA

Details

Part# BHO-100ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

1 In. Housing Diameter, Bowed Internal Ring
1.111 In. Free Outside Diameter
0.042 In. Thick
0.062 In. Hole Diameter

1.066 In. Groove Diameter
0.062 In. Groove Width
0.033 In. Groove Depth

? RoHS Compliant ? REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$0.9080
100 - 499	$0.4540
500 - 999	$0.3630
1000 - 4999	$0.3300
5000 - 9999	$0.3030
10000 +	$0.2800

473 In Stock

(*) Minimun Quantity: 50

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
