10F100KFC

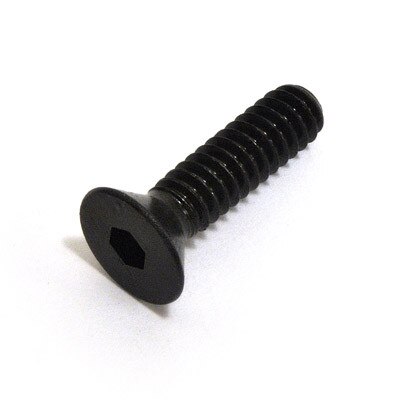

10F100KFC, Kerr Lakeside 10-32X 1 In. Flat Head Socket Cap Screw, made of alloy steel with a thermal black finish. Made in USA

Details

Part# 10F100KFC

10-32X 1 Flat Head Socket Screw
Alloy Steel
Thermal Black Finish

Supplied by Kerr Lakeside
Per ASTM A574/ANSI B 18.3 Specifications
1/8 Hex Drive
Fully Threaded
UNF Fine Thread
RC 38-43 Hardness

Made in Usa

Quantity discounts available

Quantity	Price
100 - 499	$0.2230
500 - 999	$0.1790
1000 - 4999	$0.1630
5000 - 9999	$0.1490
10000 +	$0.1380

4072 In Stock

(*) Minimun Quantity: 100

More information

Flat head socket screws are designed with an 82° countersunk flat head, allowing flush mounting for seamless movement of adjacent parts. They are not recommended for applications demanding superior fatigue resistance. Standard socket head cap screws offer superior tensile, yield, and shear strength compared to equivalent hex head cap screws, while requiring a smaller counter-bore due to their internal wrenching mechanism. Their hexagonal center recess enables tightening with an Allen key or hex tool. The absence of side clearance restrictions makes them ideal for close tolerance assemblies.
